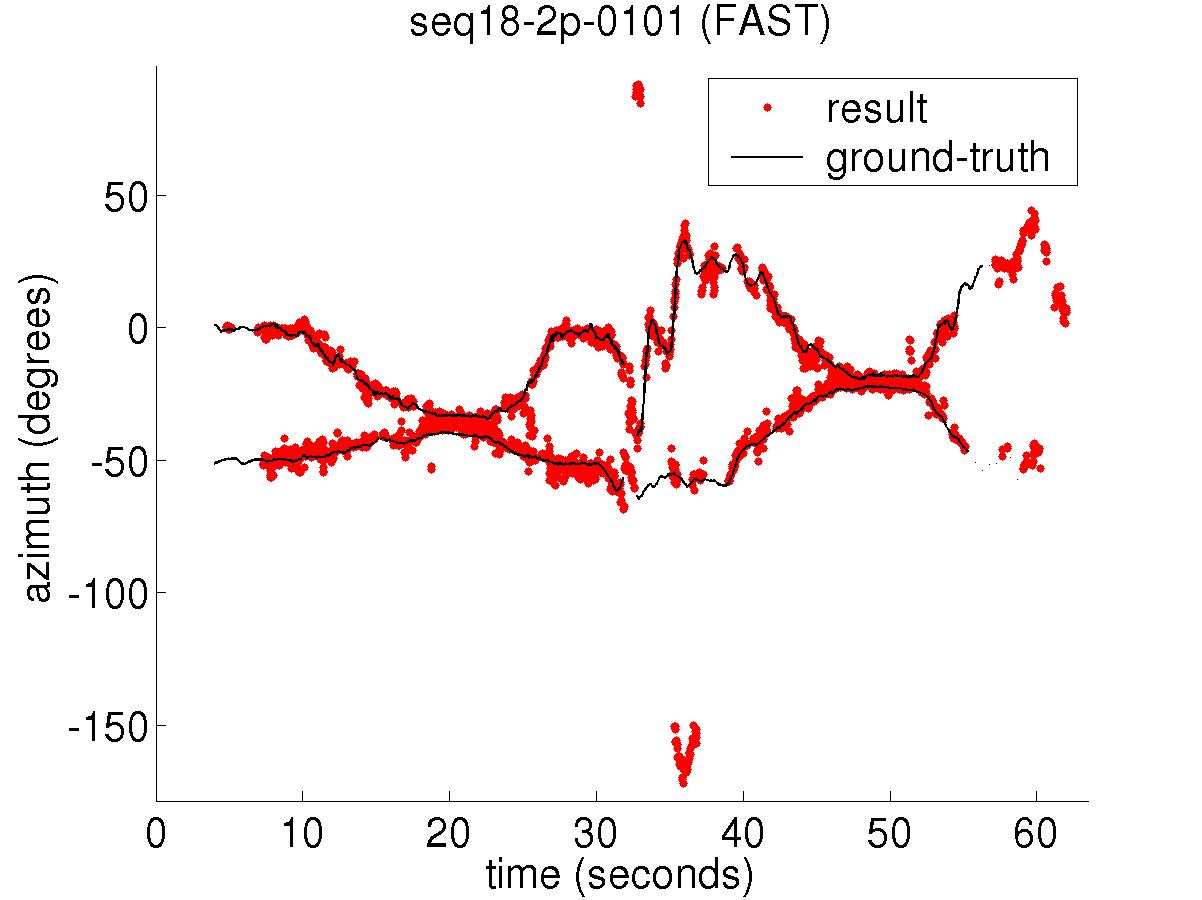

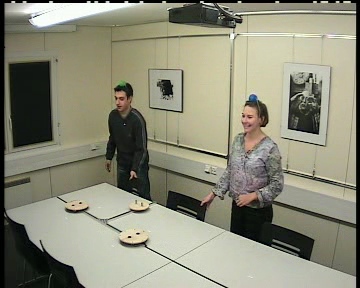

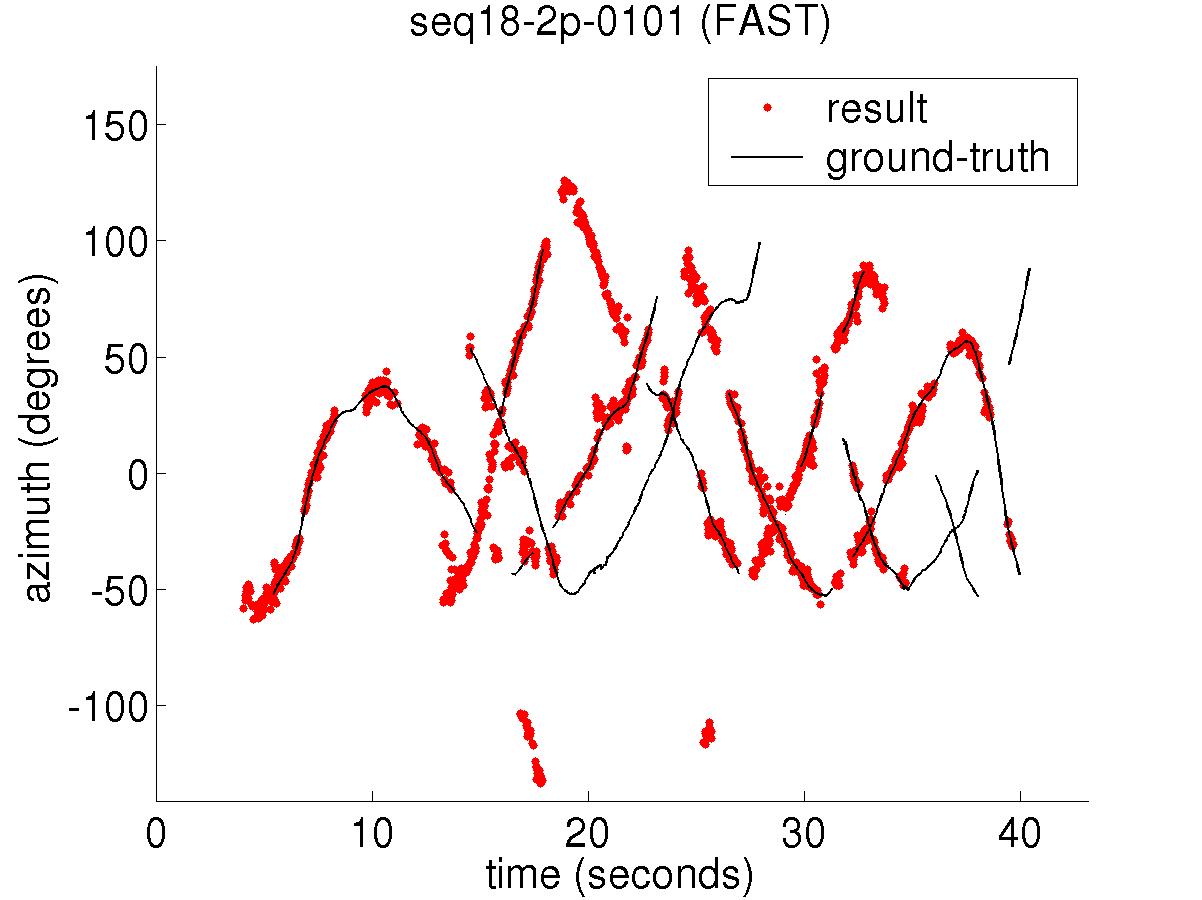

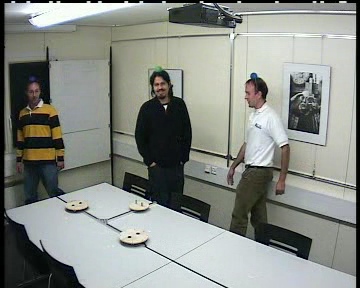

seq18 - camera snapshot seq18 - localization result      seq45 - camera snapshot seq45 - localization result

Multispeaker detection-localization: an implementation

This directory contains a MATLAB/C implementation of multispeaker detection-localization using a microphone array, along with 8 real recordings and their 3D ground-truth (excerpts from the AV 16.3 corpus).

The corresponding research report is IDIAP RR 06-26.

Unless you are on an Intel Pentium (4) platform, you may need to recompile the MEX files. Do not worry, this is quite easy. See the instructions at the top of FAST_detect_locate.m. If you still cannot run FAST_detect_locate with the MEX files, you can try it with the original MATLAB implementation activated (look for if 1 in FAST_detect_locate.m). Of course this would be much slower.

Look at README.m if you want to understand each step, and/or you are interested in tests with multiple moving/seated speakers.
Look at MEETING_SEG.m if you are only interested in meeting segmentation (subset of README.m).
Both rely on the same implementation.

Compatibility issues: there are 3 binary data files in the "DATA" subdirectory, that were created with MATLAB 6.5.1. If your MATLAB version cannot read those, then use the 3 companion MATLAB functions to recreate them ("DATA/*_mat.m" ASCII files).

Questions? ->

Back to the audio resources page


/com/mmm/shared/lathoud/2006-multidetloc/
2006-multidetloc-code.tar.gz [archive of this directory (1.9 M)]
2006-multidetloc-data.tar.gz [archive of the DATA subdirectory (300 M)]
DATA/ [all eight recordings, their ground-truth, and the calibration file]
FASTTDE_detect_locate.m [main MATLAB function, "FASTTDE" implementation (=faster but imprecise).]
FASTTDE_detect_locate_wrapper.m
FAST_detect_locate.m [main MATLAB function, "FAST" implementation]
FAST_detect_locate_wrapper.m
FULL_detect_locate.m [main MATLAB function, "FULL" implementation (=slow).]
FULL_detect_locate_wrapper.m
MEETING_SEG.m [a stripped down version of README.m, if you only need to segment meetings]
README.m [where you should start]
angle_within.m
cart2sph_mat.m
check_2d2g1se_model.m
check_param.m
chrono_check.m
chrono_start.m
chrono_stop.m
classify_cluster_sns.m
classify_frame_sns.m
close_seg.m
compute_gccphat_c.c
compute_gccphat_c.mexglx
compute_post_2d2g1se.m
compute_post_gmm.m
compute_post_raylsherl.m
compute_smooth_loctimeseg.m
construct_raw_loctimeseg.m
define_silence_in_seg.m
determinit_gmm.m
dE_E_fun.m [part 1/2 of the MATLAB implementation equivalent to the MEX C implementation onearray_run_scg_fast_logsph_c.c]
dilate_seg.m
dilation.m
dilation_rows.m
display_cost.m
display_raw.m
display_raw_loop.m
display_stats.m
display_stats_sbmfcc.m
do_em_gmm.m
erode_seg.m
estimate_K_gmm.m
eval_detloc.m
example_cluster_level_sns.m
example_frame_level_sns.m
far_frr.m
fill_default.m
fit_raylsherl.m
get_ssm_activeness_c.c
get_ssm_activeness_c.mexglx
index.html.save
index.html~
location_to_timedelay.m
log_mvnpdf.m
log_normpdf.m
main_loop.m
main_loop_gmm.m
my_logsum_fast.m
my_logsum_fast.pdf
one_array_fasttde_dirloc_c.c
one_array_fasttde_dirloc_c.mexglx
onearray_run_scg_fast_logsph_c.c
onearray_run_scg_fast_logsph_c.mexglx
open_seg.m
pair_distance.m
peigne_vec.m
plot_loctimeseg.m
plot_multi_cluster.m
run_scg_fast.m [part 2/2 of the MATLAB implementation equivalent to the MEX C implementation onearray_run_scg_fast_logsph_c.c]
sbmfcc_sns_model.m
seq11-1p-0100-FAST-before-SNS.eps
seq11-1p-0100-FAST.eps
seq18-2p-0101-FAST.eps
seq24-2p-0111-FAST.eps
seq40-3p-0111.eps
seq45-3p-1111-FAST.eps
show_static_seg.m
simplify_seg.m
sph2cart_mat.m
static_bic.m
static_sigma.m
train_gmm_bic.m
wa_sns_model.m

Last updated on 2011-11-04 by Guillaume Lathoud - glathoud at yahoo dot fr
